Introduction Injection molding machines are widely used to manufacture plastic components for industries such as automotive, electronics, medical equipment, packaging, consumer products, and industrial applications. At the center of these machines is a drive system that controls important movements such as injection, screw rotation, mold opening and closing, and ejection. Traditional injection molding machines commonly rely on hydraulic systems. Modern equipment, however, may use servo-electric drives or combine electric and hydraulic technologies. In an all-electric machine, servo motors are used to control major machine movements instead of relying on hydraulic power for those functions. Hybrid and servo-hydraulic designs use electric drive technology together with hydraulic components. The choice of drive architecture can affect precision, energy use, operating characteristics, maintenance requirements, and the suitability of a machine for a particular application. For example, manufacturers producing precision components may have different requirements from those producing large, general-purpose plastic parts. This guide explains how electric drives work in injection molding machines, their benefits and limitations, different drive configurations, important features, current developments, and practical factors to consider when evaluating a system.
What Is an Electric Drive in an Injection Molding Machine?
An electric drive converts electrical energy into controlled mechanical movement. In an injection molding machine, servo motors and associated drive electronics can control individual machine axes.
Depending on the machine design, electric drives may control:
- Injection movement
- Screw rotation or plasticizing
- Mold opening and closing
- Ejection
- Auxiliary movements
- Other positioning functions

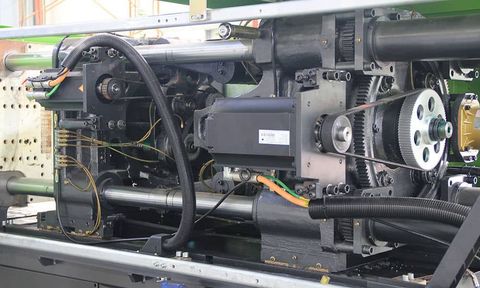

A servo motor works with a servo drive and feedback system. The controller sends commands for speed, position, or torque, while feedback from sensors helps the system determine whether the motor is following the required movement.
In an all-electric injection molding machine, several servo motors may independently control different operations. This provides precise electronic control over the molding sequence.
Some machines use a hybrid approach. For example, electric drives may control injection and plasticizing while hydraulic systems handle clamping or other high-force operations.
How Electric Drive Systems Work
A simplified electric-drive process looks like this:
- The machine controller receives the programmed molding sequence.
- The controller sends commands to the servo drives.
- Servo drives regulate electrical power supplied to the motors.
- Motors generate controlled movement.
- Position and speed feedback is continuously monitored.
- The controller adjusts the drive commands when necessary.
- The machine completes the injection, cooling, mold opening, and ejection sequence.
This closed-loop control is one reason servo systems are useful for applications requiring repeatable movement.
The exact arrangement differs between manufacturers and machine models. Some systems use dedicated motors for individual axes, while others combine electric and hydraulic technologies.
Benefits of Electric Drives
Precise Motion Control
Servo motors can provide accurate control over position, speed, and torque. This can be useful when injection speed profiles or screw movements need to be controlled carefully.
Repeatability
Electronic control and feedback can help a machine repeat programmed movements consistently. This can be important when producing large numbers of similar components.
Energy Management
Electric motors can be controlled according to the movement required instead of continuously operating a hydraulic pump at a fixed condition. Actual energy performance depends on the machine design, process, material, cycle, and operating conditions.
Some modern systems also incorporate regenerative technology. For example, Milacron describes regenerative servo-drive technology in its eQ-Series that can return excess energy to the power supply.
Reduced Hydraulic Components
An all-electric machine does not require hydraulic oil for the primary machine movements. This can simplify certain aspects of maintenance and eliminate hydraulic oil from the machine's drive system.
Clean Operating Environment
The absence of hydraulic oil in an all-electric architecture can be useful in applications where cleanliness is particularly important. Manufacturers such as Chen Hsong position all-electric machines for applications including medical, optical, electronics, and cleanroom production.
Fast Response
Servo motors can respond rapidly to control commands. This can be valuable in applications involving quick injection, positioning, or mold movements.
Limitations of Electric Drives
Electric drives also have limitations that should be considered before selecting a machine.
Higher Initial Complexity
Servo motors, drives, controllers, feedback devices, and associated electronics create a sophisticated control system. Technicians may require specialized knowledge for troubleshooting.
Initial Equipment Cost
Depending on machine size and configuration, an all-electric system may have a different initial cost from a conventional hydraulic machine. The appropriate comparison should include energy, maintenance, production requirements, and expected operating life.
High-Force Applications
Very large injection molding applications can require substantial clamping forces. Hydraulic and hybrid architectures remain relevant for some large machines and applications.
Electrical and Electronic Maintenance
Although an all-electric machine reduces hydraulic components, it does not eliminate maintenance. Motors, servo drives, encoders, cables, controllers, cooling systems, and electrical connections still require inspection and appropriate servicing.
Application Dependence
An electric drive should not be considered automatically suitable for every molding application. Machine selection depends on material, mold, clamping force, shot size, cycle time, tolerances, production volume, and factory conditions.
Types of Injection Molding Drive Systems
There are three broad categories worth understanding.
| Drive Type | Main Technology | Typical Characteristics |
|---|---|---|
| Conventional Hydraulic | Hydraulic pump and valves | Established technology, suitable for many applications |
| Servo-Hydraulic | Servo motor plus hydraulic system | Variable-speed hydraulic operation with electronic control |
| All-Electric | Servo motors and electric drives | Electrically controlled major machine movements |
| Hybrid | Combination of electric and hydraulic | Uses different technologies for different machine functions |
Conventional Hydraulic
Hydraulic machines use a motor and pump to generate hydraulic pressure. Valves and hydraulic circuits then control movement.
They remain widely used because hydraulic systems can provide substantial force and can be configured for many different machine sizes.
Servo-Hydraulic
Servo-hydraulic machines combine an electric servo motor with hydraulic power. The servo motor controls the hydraulic pump according to the machine's requirements.
This approach can provide a transition between conventional hydraulic and all-electric technology.
All-Electric
All-electric machines use servo motors for major machine movements. Sumitomo (SHI) Demag, for example, describes its IntElect machines as all-electric and uses a direct-drive concept developed for injection molding applications.
Hybrid
Hybrid machines combine electric and hydraulic technologies. This can allow manufacturers to use electric control where it provides particular process benefits while retaining hydraulic technology for other functions.
Key Features to Consider
When comparing electric drive systems, the following features deserve attention.
Motor Configuration
Find out which machine functions are electrically driven. An all-electric machine may have separate servo motors for injection, screw rotation, clamping, and ejection.
Servo Drive Capacity
The servo drive must match the motor and the required load. Drive capacity can affect acceleration, speed control, and torque availability.
Feedback System
Encoders and other feedback devices provide information about motor position and movement. Reliable feedback is important for closed-loop control.
Injection Speed and Pressure Control
Look at how the machine controls injection speed, pressure, and switching points. These settings can influence molding consistency.
Screw Rotation
Plasticizing requirements vary according to resin, screw diameter, shot size, and cycle time. The drive system should provide appropriate torque and speed.
Clamping System
Electric drive technology does not determine the entire machine design. Consider the clamping mechanism, available force, mold dimensions, and required mold-opening stroke.
Controller
The control system is the interface between the operator, machine, and drive components. Important considerations include programming, monitoring, alarms, data logging, and process control.
Communication
Modern machines may support industrial communication protocols and factory-management systems. For example, some current all-electric platforms advertise connectivity for smart manufacturing systems.
Latest Trends and Innovations
Electric-drive technology continues to develop alongside broader manufacturing automation.
Greater Machine Connectivity
Manufacturers are increasingly integrating machine data with production monitoring and manufacturing-management systems. This can allow operators to monitor production information, alarms, process parameters, and machine conditions.
Regenerative Drive Technology
Some electric-drive systems can recover energy during certain deceleration processes and return it to the electrical system. The exact energy benefit depends on machine architecture and production conditions.
Integrated Automation
Robots, part-removal systems, conveyors, quality inspection, and material-handling equipment can be integrated with molding machines. This can reduce manual handling in suitable production environments.
Process Monitoring
Sensors and software can monitor injection pressure, temperature, position, speed, and other process variables. This information can help operators identify changes during production.
Data-Based Maintenance
Machine data can increasingly be used to identify unusual operating conditions and support maintenance planning. This is part of a broader move toward connected manufacturing.
More Application-Specific Electric Machines
Manufacturers are developing electric machines for areas such as medical components, electronics, optical parts, and packaging. Chen Hsong, for example, currently lists all-electric machines from 20 to 650 tonnes for applications including medical, optical, and electronics production.
Comparing Drive Technologies
| Factor | Hydraulic | Servo-Hydraulic | All-Electric |
|---|---|---|---|
| Main Power Technology | Hydraulic | Servo + hydraulic | Servo-electric |
| Hydraulic Oil | Required | Required | Not required for primary electric axes |
| Motion Control | Hydraulic control | Electronic + hydraulic | Electronic servo control |
| Precision Potential | Application dependent | Improved control | High level of electronic motion control |
| Maintenance | Hydraulic + electrical | Hydraulic + electrical | Electrical/mechanical |
| Cleanliness | Hydraulic oil present | Hydraulic oil present | No hydraulic oil in primary drive system |
| Large-Machine Applications | Common | Common | Depends on machine range |
| Connectivity | Varies | Varies | Often highly integrated |
This comparison is general. Actual performance depends on the specific machine, mold, process, material, and operating conditions.
Companies and Solutions to Research
Several established manufacturers offer electric, hybrid, or servo-driven injection molding technologies.
Sumitomo (SHI) Demag
Sumitomo (SHI) Demag offers all-electric machines as well as hybrid and servo-hydraulic systems. Its IntElect platform uses an electric drive architecture, while its broader product range demonstrates the different machine configurations available.
Milacron
Milacron's eQ-Series is an all-electric platform using servo drives and regenerative technology. The company describes applications involving precise process control and repeatability.
Chen Hsong
Chen Hsong offers all-electric, hydraulic, and hybrid injection molding technologies. Its current all-electric range includes machines aimed at precision-oriented applications.
Futech Machinery
Futech, based in India, lists hydraulic, servo-hydraulic, and all-electric injection molding machines across different machine ranges. Its ES Series represents its all-electric category.
These examples illustrate why comparing individual machine specifications is more useful than comparing manufacturers only by brand name.
How to Choose the Right Drive System
Start with the application rather than the drive technology.
Consider:
- Type of plastic material
- Part dimensions
- Part weight
- Mold size
- Number of cavities
- Required clamping force
- Injection pressure
- Injection speed
- Cycle time
- Production volume
- Required tolerances
- Factory electricity costs
- Available maintenance expertise
- Cleanroom or cleanliness requirements
- Automation requirements
For precision medical or electronic components, the ability to control movement accurately may be particularly important. For large industrial components, machine size and clamping capability may have greater influence.
For general-purpose production, a servo-hydraulic machine may provide a different balance of capabilities and operating requirements.
The right choice should therefore be based on the complete production process rather than one specification.
Selection Checklist
Before evaluating an electric-drive injection molding machine, review this checklist:
- Confirm required clamping force
- Calculate required shot size
- Check mold dimensions
- Review injection speed requirements
- Evaluate screw diameter and plasticizing capacity
- Check motor and servo-drive specifications
- Review position and pressure feedback
- Evaluate controller functions
- Check available machine cycles
- Review electrical requirements
- Consider automation compatibility
- Check communication and data capabilities
- Review maintenance requirements
- Consider technician training
- Compare expected energy consumption
- Review manufacturer documentation and support
Tips for Operation and Maintenance
Proper operation can help maintain consistent machine performance.
Keep electrical cabinets clean and adequately ventilated. Excessive heat and contamination can affect electronic components.
Inspect cables, connectors, sensors, and feedback devices periodically. Damaged cables can lead to intermittent faults or inaccurate feedback.
Follow the manufacturer's lubrication requirements for mechanical components such as bearings, ball screws, guides, and other moving parts.
Monitor unusual vibration, noise, temperature, or changes in cycle performance. These can provide useful indications that inspection may be required.
Keep machine parameters documented. If a stable production recipe has been established, recording the relevant settings can make troubleshooting and repeat production easier.
Also maintain appropriate cooling for electrical and servo components. Heat management is particularly important for electronic equipment operating continuously.
Maintenance intervals should always follow the specific machine manufacturer's documentation because different machines use different components and service requirements.
Frequently Asked Questions
Are electric drives the same as servo drives?
Not exactly. An electric drive is a broader term for a system that controls an electric motor. A servo drive is a specialized type of electric drive designed for controlled motion, typically using feedback for accurate position, speed, or torque control.
Are all-electric injection molding machines hydraulic-free?
An all-electric machine generally eliminates hydraulic power from its primary machine movements. However, the exact architecture should be checked because auxiliary systems or specific configurations can vary.
Do electric drives reduce energy consumption?
They can reduce energy use compared with certain hydraulic configurations, but the actual difference depends on the machine, process, cycle, material, and operating conditions. Manufacturer specifications should be compared using equivalent production conditions.
Are electric machines suitable for large parts?
It depends on the machine and application. All-electric machines are available in different sizes, but very large clamping-force requirements may lead manufacturers to consider hydraulic or hybrid configurations.
What maintenance do electric-drive machines require?
They still require mechanical and electrical maintenance. Motors, servo drives, cables, feedback devices, lubrication systems, cooling systems, and moving components all require appropriate inspection and servicing.
Can electric-drive systems be automated?
Yes. Electric-drive injection molding machines can be integrated with robots, part-removal systems, conveyors, monitoring systems, and other factory automation equipment, depending on the machine's interfaces and control architecture.
Conclusion
Electric drives have become an important technology in modern injection molding because they allow precise electronic control of machine movements. Depending on the machine architecture, servo motors can control injection, plasticizing, clamping, ejection, and other operations.
All-electric systems can provide a clean operating environment and highly controlled motion, while servo-hydraulic and hybrid designs combine electric control with hydraulic technology. Conventional hydraulic systems also remain relevant for many applications.
Choosing between these technologies requires more than comparing energy consumption or motor specifications. The material, mold, part geometry, production volume, cycle time, clamping force, quality requirements, factory environment, and maintenance capabilities all need to be considered.
The most useful approach is to define the production requirements first and then compare suitable drive architectures. With a clear understanding of how electric drives work and where their strengths and limitations lie, manufacturers can make more informed decisions about injection molding equipment and long-term production requirements.
